Specifications of Cleaned Tungsten Wire

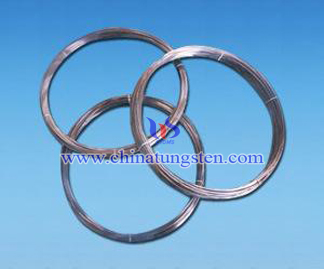

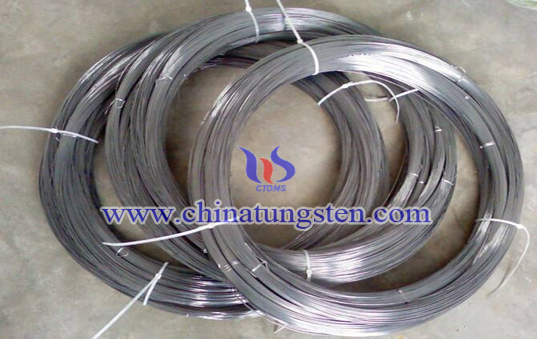

Cleaned Tungsten Wire Picture

Our company provides various cleaned tungsten wire specifications, and here are some samples.

Diameter (µm) Wire Weight per 200mm
in length (mg)
Wire Weight per 200mm in length for
tolerance (%)
Linearity
Class A Class B Suspension length (%) Chord high (mm)
10 d 18 >0.3~0.98 +2.5 +3.0 - -
18 < d 40 >0.98~4.85 +2.0 +2.5 - -
40 < d 80 >4.85~19.39 +1.5 +2.0 90 -
80 < d 100 >19.39~30.30 +1.0 +1.5 - -
100< d 300 >30.30~272.71 +1.0 +1.5 - 8
300< d 400 >272.71~484.80 +0.5 +1.0 - -
